Optical High Precision Detector
Our Inspection Equipment

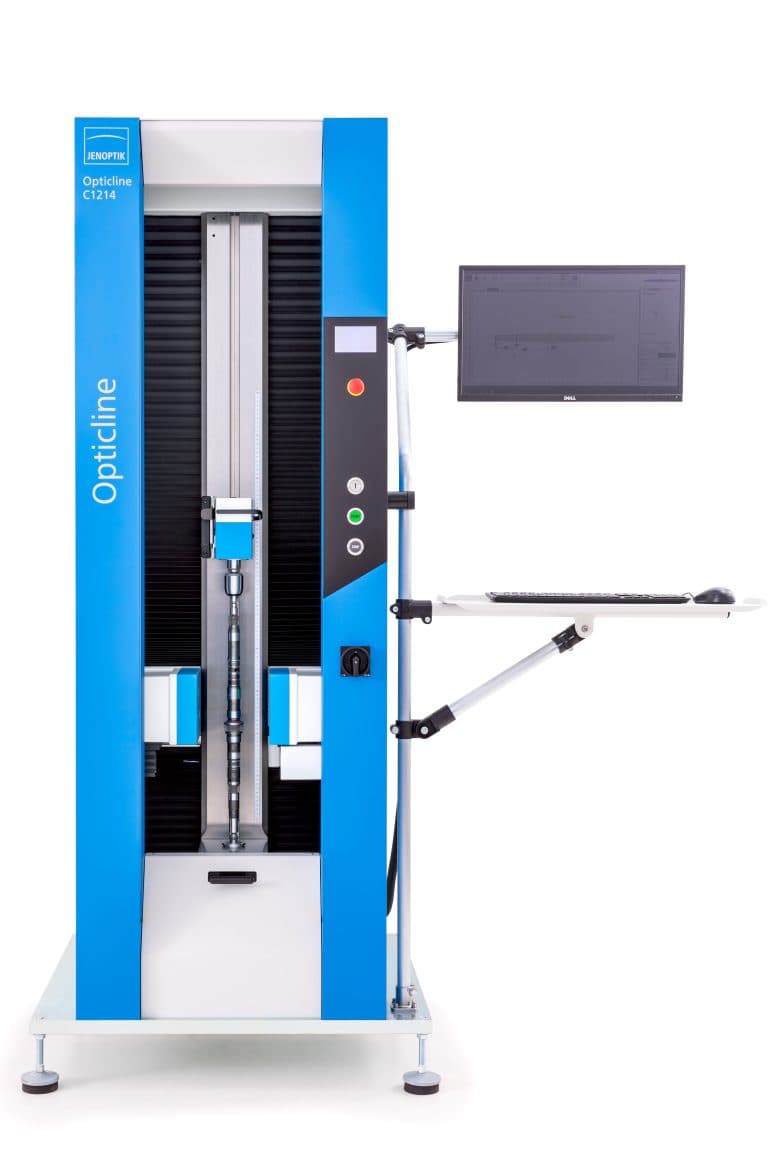

Opticline C-Series
Non-contact optical shaft fast tester
The Opticline C-Series shaft tester systems offer extremely high gage capabilities from 1 µm. Choose from a high-precision C-axis or multiple sensors to tailor performance to your needs. High flexibility, high precision and stability
Features:
1. Optical contour scanning static and dynamic comprehensive measurement system, with shape tolerance detection such as length, diameter, angle, roundness, concentricity, deflection, cylindricity, straightness and thread measurement, including length measurement and contour Combined function of projection and circular measurement
2. Suitable for measuring shafts on both sides, impellers, plungers, pistons, piston rods, needle valve bodies, gear shafts, flanges, crankshafts, camshafts, rotor shafts, etc., with a measurement resolution of 0.1um in diameter and 1.2mm in length
3. The measurement is completed in an instant, very fast; the measurement is precise, and the accuracy level reaches µm level
4. Two-way detection by the camera during measurement, the diameter of the detectable workpiece can reach 140mm, and the maximum length is 1200mm
4. Two-way detection by the camera during measurement, the diameter of the detectable workpiece can reach 140mm, and the maximum length is 1200mm
Our Inspection Equipment
TRIMOS V7
Two-dimensional height gauge
Features:
V7Two-dimensional height gauge
It is used as a universal measuring and testing instrument in the field.
It is a brand-new and complete measuring instrument that provides customers with accurate measurement requirements.
It has extremely strong flexibility, robustness, and the maximum use range can reach an astonishing 400mm long probe for measurement.
The V7 altimeter is equipped with a revolutionary technology that uses a manual and electric integrated handwheel. Users can switch between modes.
• Measuring range 400~1800mm
• Measuring height 700mm
• Simple and easy-to-use graphical interface
• Manual or automatic displacement operation
2D mode, programming measurement, data statistics
• Large range accessories
• All adjustments are tool-free
• RS232 and USB interface
